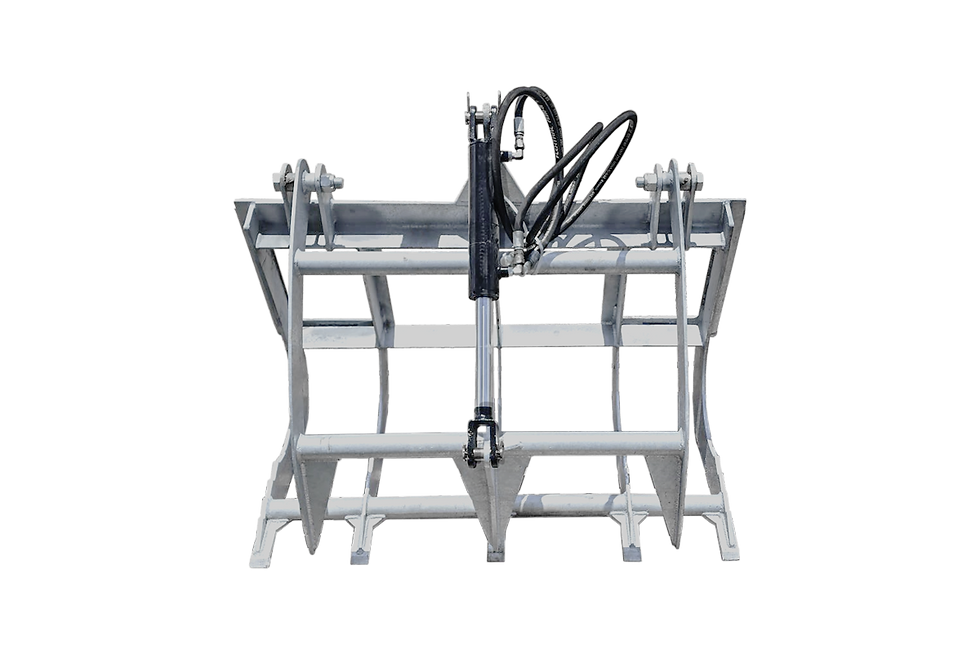

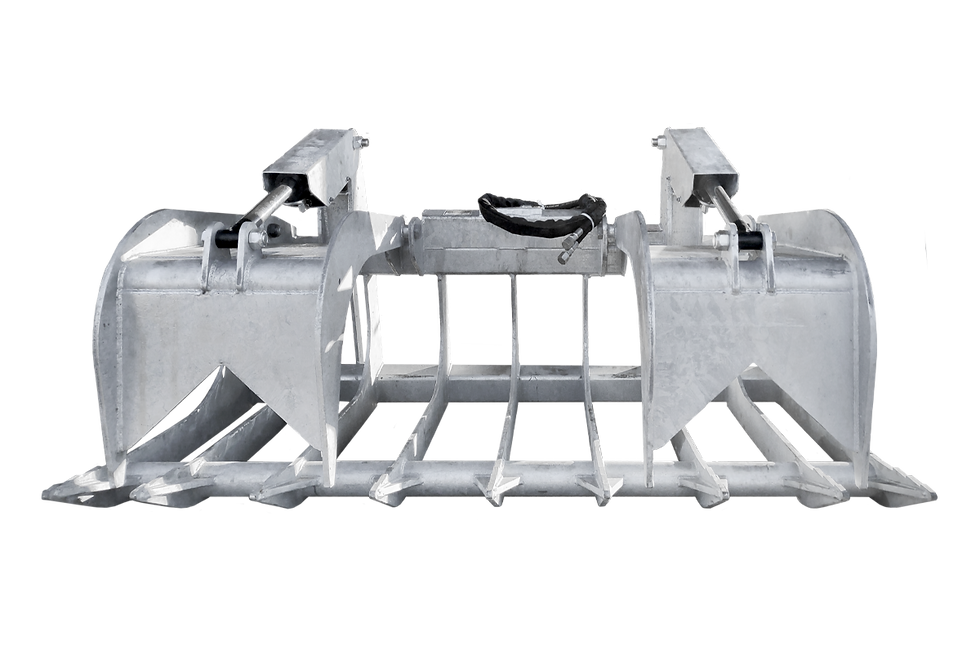

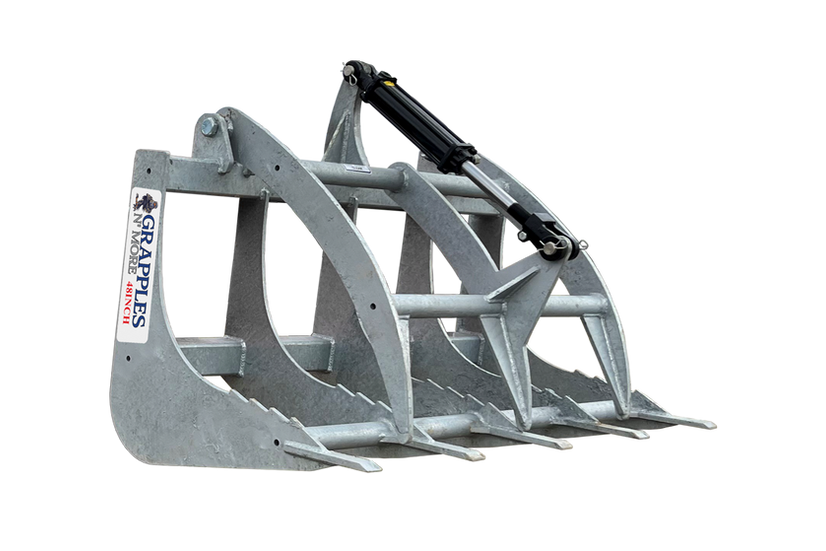

48" Ultra-Light Compact Tractor Grapple
Our ultra-light compact grapple is ideal for raking and loading debris. Rated for a max use of 40hp, our compact grapple is built heavy enough for rigorous use, but also light enough for compact tractors.
PRODUCT FEATURES
• Single 2" x 8" cylinder
• Universal Quick Attach
• AG tractors ONLY (not for skid steer use)
• Grease zerks at pivot points
• A36 steel - 1/2" upper tines & 3/8" lower tines
• Hot dipped galvanized for life longevity
SPECIFICATIONS
| MODEL | 48" |
|---|---|
| Overall Width | 48-3/4" |
| Overall Depth | 30-3/16" |
| Height with Teeth Closed | 36" |
| Height with Teeth Opened | 46-5/16" |
| Maximum Opening | 38-3/16" |
| Grapple Teeth (Upper) | 3 |
| Grapple Teeth (Lower) | 5 |
| Max Tractor HP | 42 HP |
| Weight | 320 lbs |
OPERATOR'S MANUAL
